  • Wheel Monitor will be promoting the Proviso Plus - Universal Suspension Controller at Truck World 2012. Come visit us at booth # 5042.
  • Wheel Monitor is sponsoring the October 6th Automotive Transportation Service Superintendents Association (K-W and District) Meeting. John Mantini will be presenting details pertaining to our latest product the Proviso Plus P200M Suspension Controller for M2A (Mechanical 2 Air). The Wheel Monitor team will also be attending this meeting. Please see the following site for more details.
  • Did you know that Wheel Monitor has a suspension controller that meets SPIF 4 legislation.
  • Did you know our new product Balancer™ B150 is approved for the Alberta Axle Lift Device Policy?
  • The trailer brake Air Tank Pressure Sensor (PN# 200519) will monitor the air brake reserve air pressure and activate a light if it is low.
  • Wheel Monitor is featured in the January issue of Ontario Trucking News. Click to read the article in HTML or as a PDF.
  • Wheel Monitor Inc. still offers the RM-50 Back Up light & Axle control module. Read more about the RM-50 here and the RM-60 here.
  • Reverse-A-Matic™ Test Tool now available!!
  • The Reverse-A-Matic was featured in a presentation by Grote at the Canadian Fleet Maintenance Seminar in Toronto on May 29th 2006
  • John Mantini & Shannon Lawson of Wheel Monitor attended the 43rd Annual CFMS in Toronto on May 29th 2006
  • Wheel Monitor is featured in the December issue of Canadian Trucking News. Click here to read the article ..
  • Ontario's SPIF regulations can be viewed by clicking here
  • FMCSA Regulation 393.207 10 MPH Air suspension exhaust dump valve controller to be met by the Reverse-A-Matic RM-60. The regulation can be read here
      • Manac has now made the Reverse-A-Matic™ RM-50 standard on their trailers
      • Wheel Monitor is co-developing a new product to meet the requirements of Central and South American customers
  • Available Trailer and Dolly Identifier is interfaceable with the GPS transponders









RM-50 Parts

The following are selected parts available from Wheel Monitor for the RM-50 (click on images to enlarge):

(note: For RM-60 Parts click here)

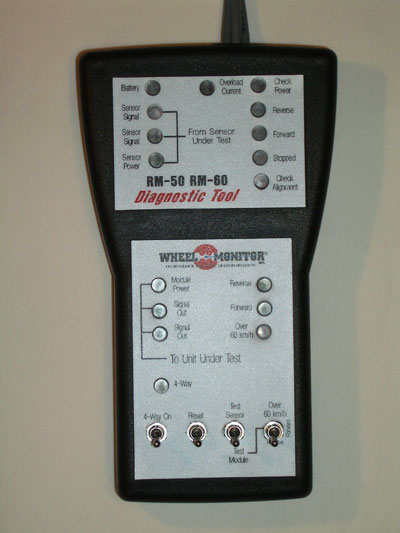

hand held diagnostic tool


HAND HELD DIAGNOSTIC TOOL
P/N 200601
designed to simplify trouble shooting
(click image at left to enlarge)



RM-50 MODULE AND KIT
P/N 200501-OEM
Lifts and locks steer axle and activates backup lights and alarm when vehicle moves in reverse motion (SPIF). Can be used for reverse back up warning systems. Excellent for 3 axle trailers.

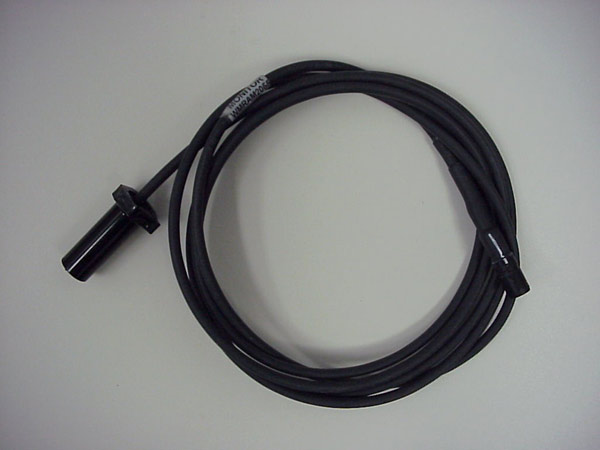

  Ram Sensor   RAM SENSOR
P/N 200512-SENSOR
Directional sensor was designed to utilize the standard ABS sensor block, clip and 100 tooth ring. High temp. and rough service cable is connected to a water resistant Sure-Seal connector to combat harsh conditions. Sensor alignment is simplified with arrow director.

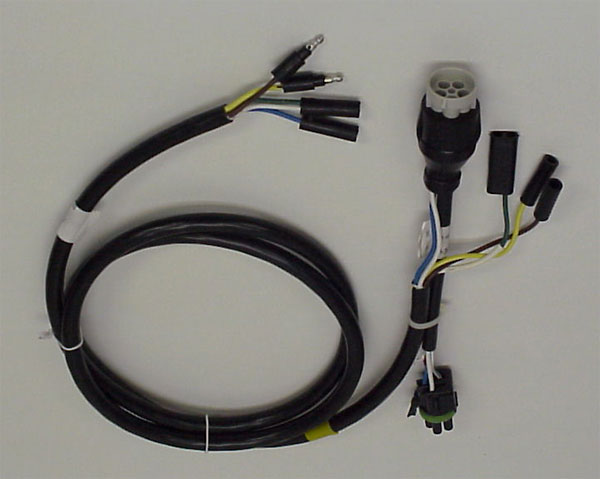

    4 WIRE SHORT HARNESS
P/N 200514
No cutting or splicing is required. Simply (T) into the main trailer harness. Colour coded molded 180 bullets plug into the module. Approx. 12" cable length between Weather Pac connector.


.

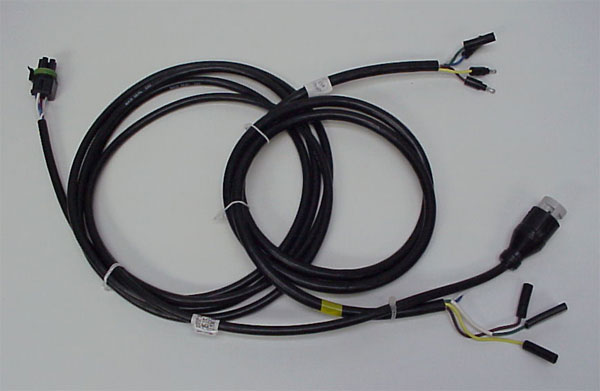

   4 WIRE LONG HARNESS
P/N 200515
No cutting or splicing is required. Simply (T) into the main trailer harness. Colour coded molded 180 bullets plug into the module. Approx. 12 foot cable length between Weather Pac connector.

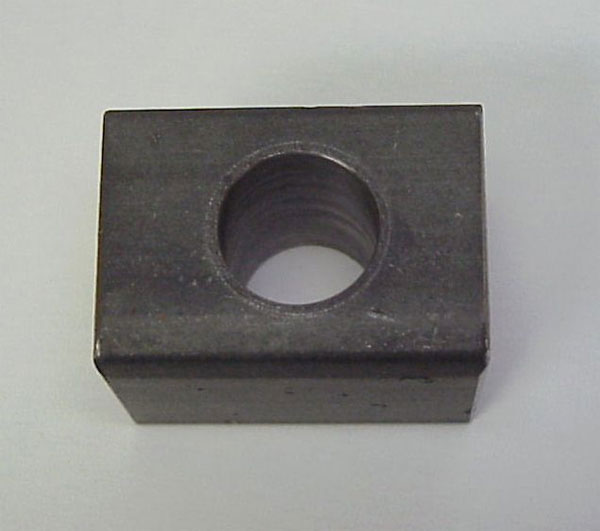

    RAM SENSOR BLOCK
P/N 200516
Sensor block is to be mounted on a driver side fixed axle. Any standard size ABS block will do. Although we do provide this part in the RM-50 Kit P/N 200501-OEM.

    RAM SENSOR CLIP
P/N 200517
The sensor clip is provided with the RM-50 kit P/N 200501-OEM to hold the wheel end sensor (P/N- 200512-Sensor) in place.

    RM-50 KIT LARGE DECAL
P/N 200588
This decal was made with safety in mind! We encourage trailer OEM's to place this sticker on the trailer visible to any person that will be doing maintenance on the trailer. It is important for anyone doing work on the trailer to be aware that the trailer is equipped with the Reverse-A-Matic.

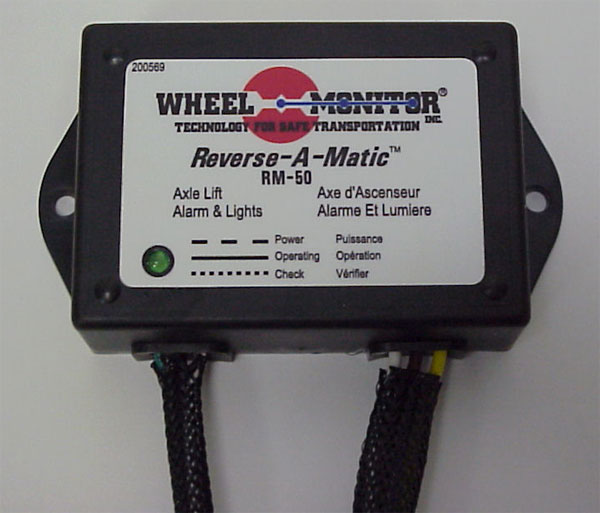

    RM-50 MODULE ONLY
P/N 200555-RM-50
Module lifts and locks steer axle and activates back up lights and alarm when vehicle moves in reverse motion. (SPIF) Can be used for reverse back up warning systems.
